Master SWCNT Synthesis
A comprehensive guide to synthesizing high-quality single-walled carbon nanotubes. Learn cutting-edge techniques, understand synthesis parameters, and explore computational tools.
Diameter Range
0.8-2.0 nm
Tensile Strength
Up to 100 GPa
Thermal Conductivity
2000-6000 W/m·K
Electrical Conductivity
Up to 10⁷ S/cm

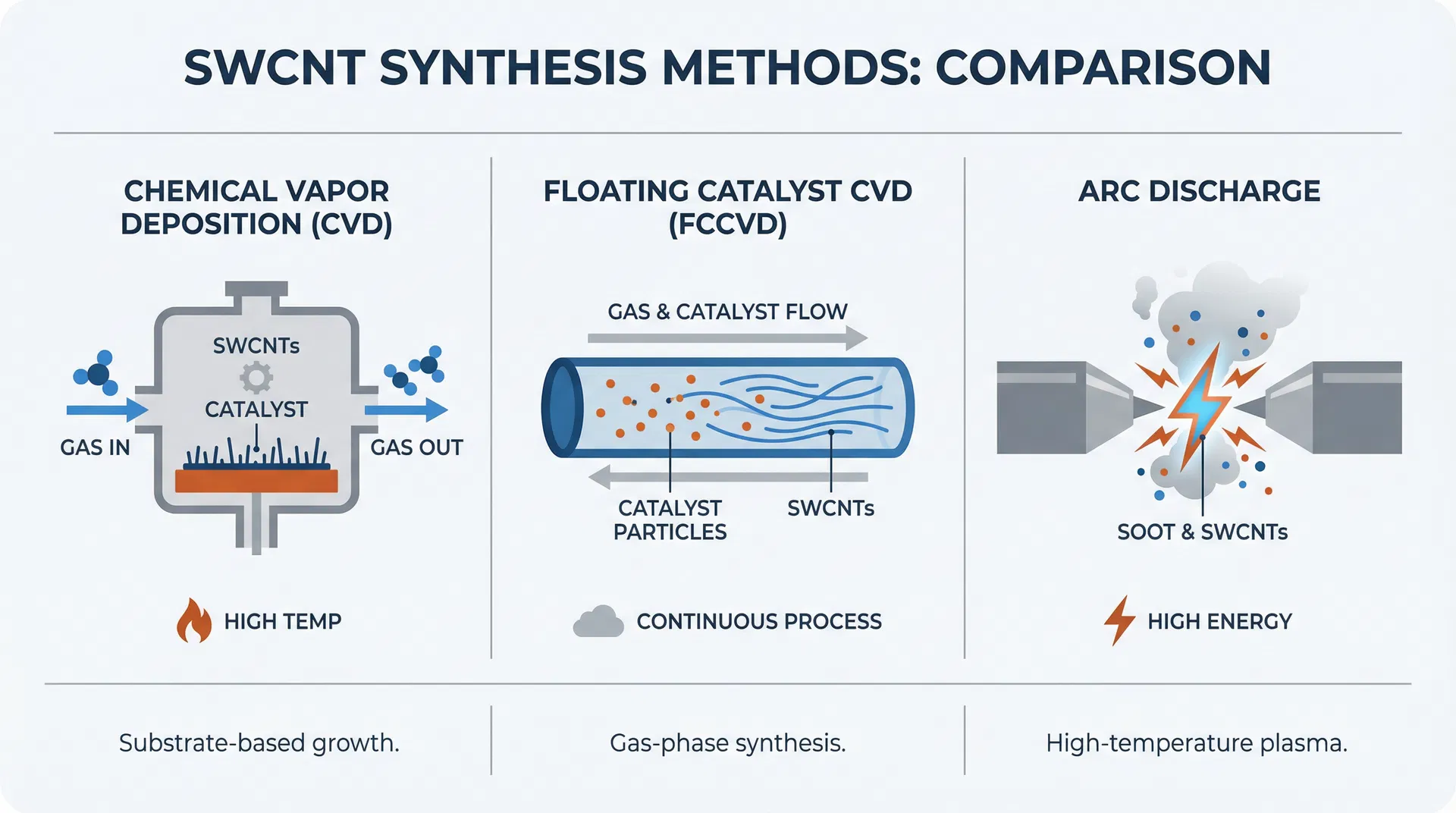

Synthesis Methods
Explore the main techniques for producing high-quality single-walled carbon nanotubes
Substrate-based growth using high temperature and controlled gas flow. Ideal for aligned CNT arrays.
Gas-phase synthesis with floating catalyst particles. Enables continuous, large-scale production.
High-energy plasma between electrodes. Produces high-quality SWCNTs but with lower yield.

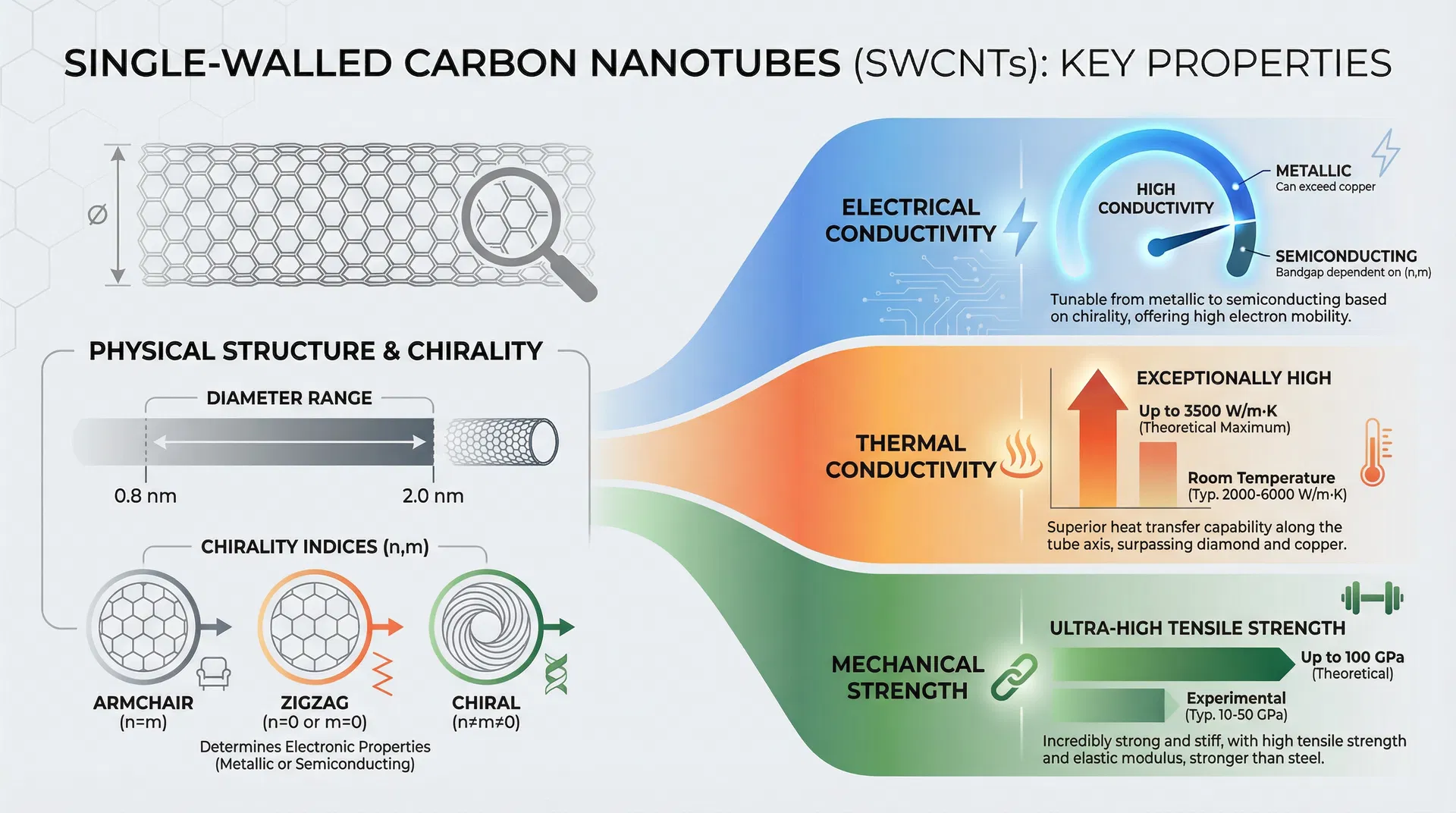

Key Properties
Understanding the unique characteristics that make SWCNTs revolutionary materials
SWCNTs can be either metallic or semiconducting depending on their chirality (n,m). This tunable electronic behavior is crucial for nanoelectronics applications.
- Metallic: σ up to 10⁷ S/cm
- Semiconducting: Bandgap tunable
- High electron mobility
Exceptional thermal conductivity along the tube axis, rivaling or exceeding diamond. Essential for thermal management applications.
- κ: 2000-6000 W/m·K
- Anisotropic conduction
- Low thermal expansion
Extraordinary strength-to-weight ratio. Tensile strength comparable to steel but with 1/6 the density.
- Tensile strength: 10-50 GPa
- Young's modulus: ~1 TPa
- High elasticity
The (n,m) indices determine tube properties. Chirality-controlled synthesis is a major research frontier for device engineering.
- Armchair (n,n): Metallic
- Zigzag (n,0): Semiconducting
- Chiral: Mixed properties
Research Tools & Resources
Computational tools and experimental techniques for SWCNT research
Computational tools for predicting SWCNT properties and growth mechanisms using DFT and MD simulations.
TEM, Raman spectroscopy, AFM, and other techniques for analyzing SWCNT structure and quality.
Access to peer-reviewed research papers, reviews, and the latest findings in SWCNT synthesis.
Detailed experimental procedures, parameter optimization guides, and troubleshooting resources.
Software for chirality assignment, structure generation, and property prediction of nanotubes.
Tools for processing experimental data, statistical analysis, and visualization of results.

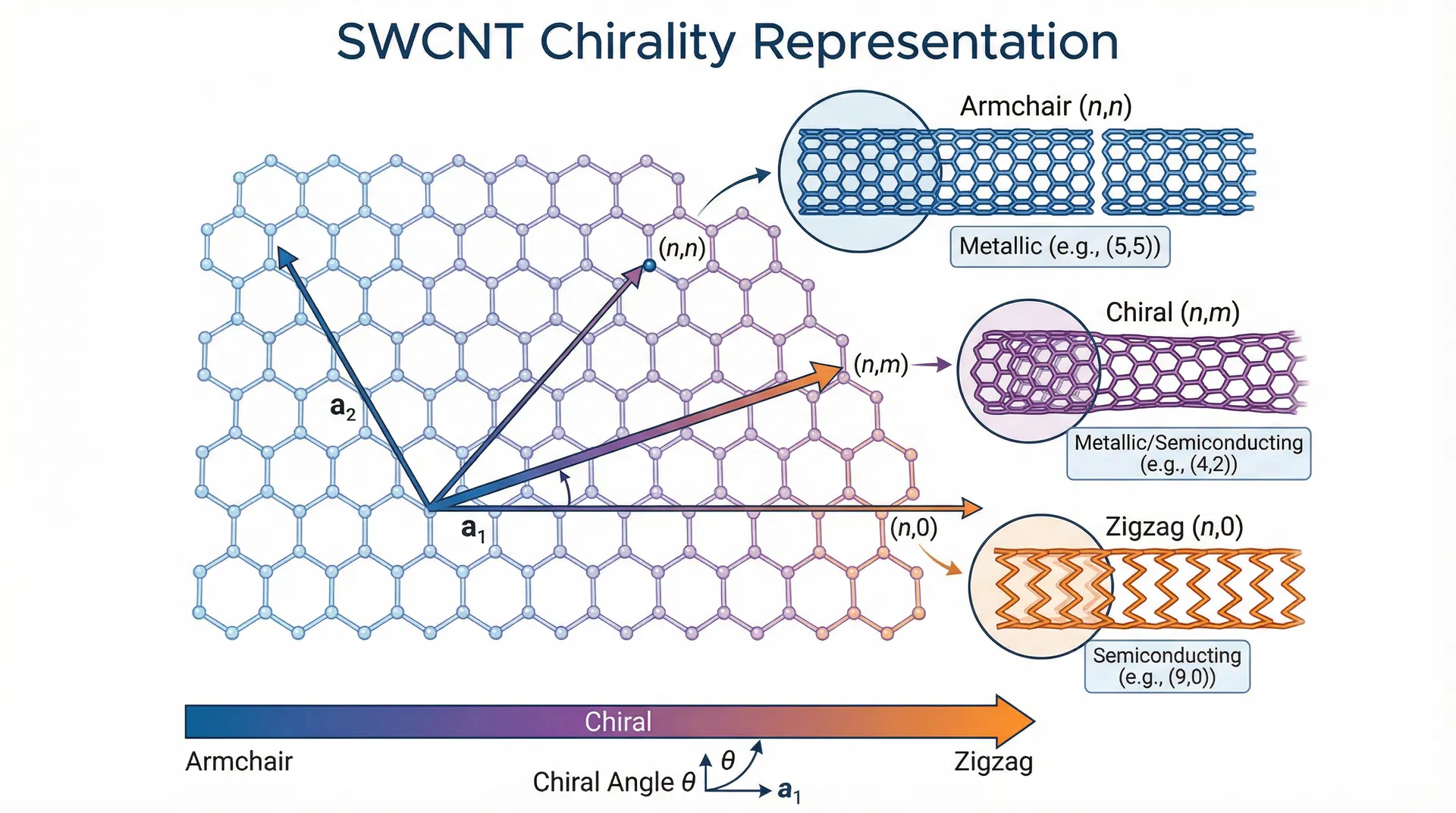

Understanding Chirality
The (n,m) indices determine SWCNT electronic and structural properties
Chirality Indices (n,m)
The chiral indices (n,m) describe how the graphene sheet is rolled into a tube. They determine:
- 1Tube diameter: d = (a/π)√(n² + nm + m²)
- 2Chiral angle: θ = arctan(√3m/(2n+m))
- 3Electronic properties (metallic vs semiconducting)
- 4Optical absorption and emission characteristics
Key Chirality Types
Armchair (n,n): Metallic, high conductivity
Zigzag (n,0): Semiconducting, tunable bandgap
Chiral (n,m): Mixed properties, most common
Ready to Dive Deeper?
Access comprehensive research papers, synthesis protocols, and computational tools to advance your SWCNT research.
